Technical Specifications
Specs That Do the Talking
Every figure here is pulled from real job-site use, not a quiet lab bench.
3600W
Rated Power
20,000W
Peak Power
140A peak output current
2304Wh
Battery Capacity
6912Wh with 3× parallel units
<2.5h
Charge Time
1200W max input, 97% efficiency
24kg
Weight
526×485×211mm

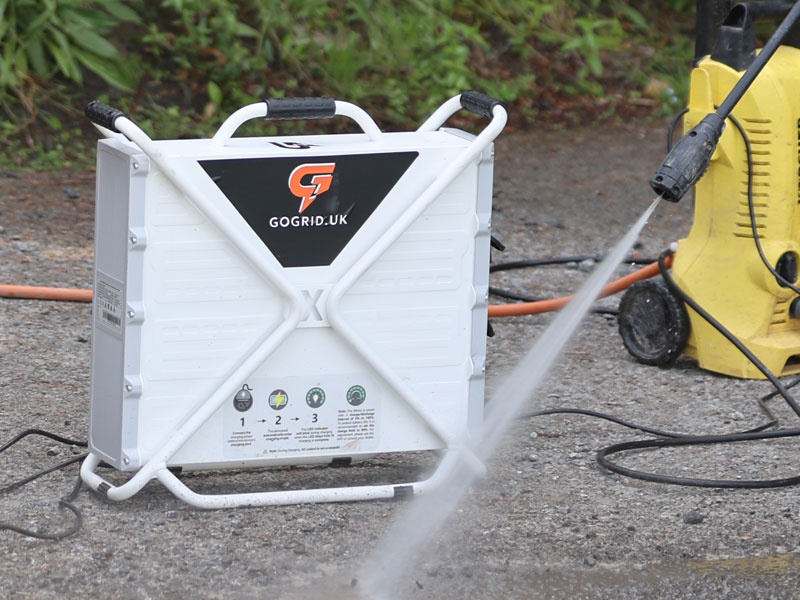

IP54
Protection Rating
Dust & waterproof
<30dB
Noise Level
Near-silent operation
97%
Efficiency
Max overall efficiency
Full Technical Parameters
| Basic Parameters | |
|---|---|
| Net Weight | 24kg |
| Dimensions (W×H×D) | 526 × 485 × 211mm |
| Capacity | 2304Wh |
| Protection Rating | IP54 |
| Cooling Method | Natural Cooling |
| Operating Altitude | Up to 2000m |
| Battery Indicator | 10-level LED display |
| Standards | IEC 62619, UN 38.3, IEC 62477, IEC 61000 |
| Output Specification | |
| Rated Output Voltage | 230V pure sine wave (EU) |
| Output Voltage Range | 230 ±5Vac |
| Frequency | 50 ±0.5Hz |
| Rated Output Power | 3,600W |
| Peak Power | 20,000W |
| Peak Output Current | 140A (max. instantaneous) |
| 150% Overload | 4000–5400W, >500s |
| 200% Overload | 5400–7200W, >50s |
| 250% Overload | 7200–9000W, >10s |
| No-load Consumption | ≤30W |
| Input Specification | |
| Rated Input Voltage | 230Vac (EU) |
| Input Voltage Range | 176–264Vac |
| Max. Input Power | 1200W |
| Rated Input Current | 6A (max. 8A) |
| Environmental | |
| Operating Temperature | Charge: 5–40°C · Discharge: −15°C to 55°C |
| Storage Temperature | −20°C to 60°C (1 month) · −20°C to 45°C (3 months) |
| Operating Humidity | 10–90% RH |
| Storage Humidity | 5–95% RH |
Design & Engineering Highlights
Cascaded Multilevel Topology
A single-stage power conversion design that keeps energy loss to a minimum.
10C Discharge NCA Battery
Cells rated for high sustained discharge, so heavy industrial loads don't faze it.
Proprietary Power Chip
An in-house power chip tuned specifically for industrial-grade delivery.
97% AC-BMS Efficiency
A battery management system that loses almost nothing to charging overhead.
Laser Weld + Annular Seal
Laser-welded seams plus an annular seal for waterproofing that holds up over years, not months.
30-Year SGCC Casing
Corrosion-resistant SGCC steel, salt-spray tested for 72 hours straight, built for the long haul.
V-Frame Steel Construction
A V-shaped steel frame under full sheet-metal casing soaks up knocks on rough sites.
Natural Internal Cooling
Passive internal airflow does the cooling, so there's no fan noise to speak of.
